What is the voltage for a RV 30 amp plug?

120 volt
For most RVs to charge, they need a 120 volt AC plug with 30 amp service.

Can I plug my RV into a 30 amp outlet?

You can plug a 30-amp RV cord into a 50-amp power receptacle, such as a power pedestal at a campground, by using an adapter. With this type of setup, you’ll enjoy the full benefits of your RV’s 30 amps of power.

Can a 30 amp RV run on 110?

Occasionally you will see a 20-amp socket, but for the most part a 110-circuit is going to give you roughly 15-amps. You can plug your RV into one of these circuits, however, you will not get the full 30 amps from your household electric.

Is a 30 amp RV plug 220 or 110?

Then, is a 30 amp RV plug 220v? The 30-amp service for an RV is 120-volt with a 3 prong receptacle and a single 30-amp dedicated breaker. The 30 AMP is a standard ANSI C73. 13, TT-30P (plug) / TT-30R (receptacle). Due to the appearance of the TT-30 plug, many people assume that it is to be wired for 240-volt, but this is a 120-volt device.

How do you plug a 30 amp generator into a RV?

You can go the expensive way: have an electrician come out and wire a plug for your RV, either 30 amp or 50 amp service. Remove the 30 amp plug from the generator plug, like you would at an RV campground. Then plug it into this adapter. Then you can plug the adapter into your heavy duty outdoor extension cord.

What kind of Breaker does a 30 amp RV need?

The 30-amp service for an RV is 120-volt with a 3 prong receptacle and a single 30-amp dedicated breaker. The 30 AMP is a standard ANSI C73. 13, TT-30P (plug) / TT-30R (receptacle).

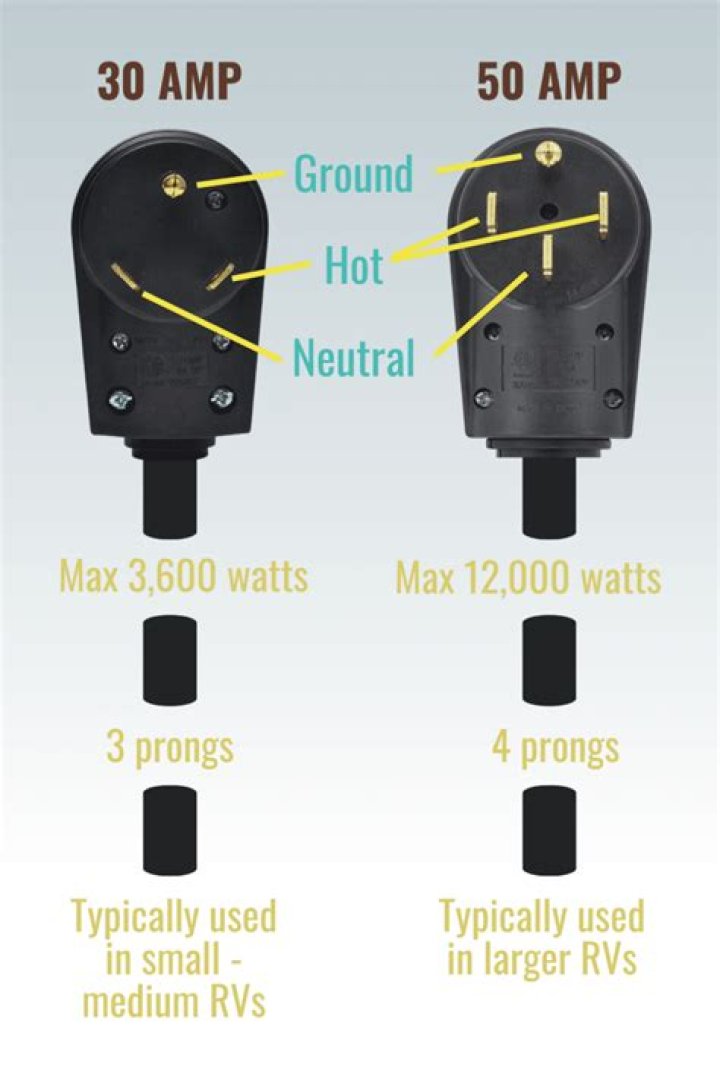

What’s the difference between 30 amp and 50 AMP plugs?

Your RV will require one or the other, and fortunately, there’s a simple way to check which type of plug your RV has: 30-amp plugs have three pins, and 50-amp plugs have four. 30-amp service is more common in smaller RVs with fewer power-hungry appliances.

The 30-amp service for an RV is 120-volt with a 3 prong receptacle and a single 30-amp dedicated breaker. The 30 AMP is a standard ANSI C73. 13, TT-30P (plug) / TT-30R (receptacle).

How to install a new 120 volt RV electric service?

A new 120-volt 30 amp electric service for an RV must therefore be fused by a single pole 30 amp circuit breaker. Consider access, exposure to rain and the potential for accidental damage when deciding where to locate the new 120 volt 30 amp outlet. Use a deep-lid weatherproof box if fitting the new outlet outside.
